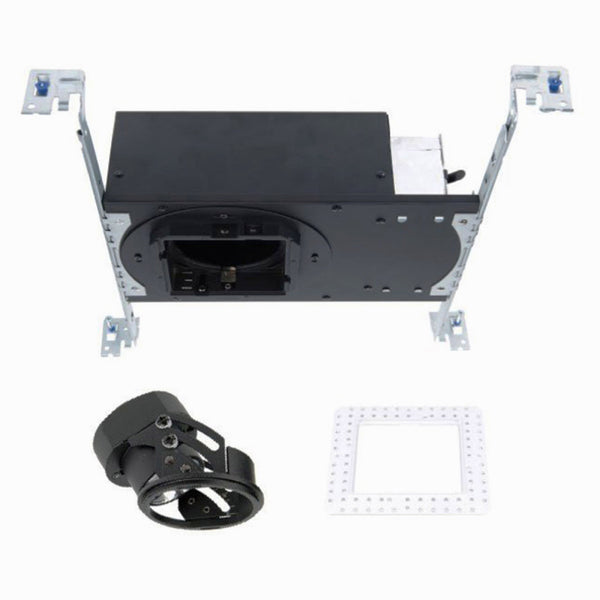

Ocularc 3.5 New Construction Housing Square
Features
- Housing only. Exterior trim sold separately
- Aperture Size: 3.5"
- Construction: 20 Gauge cold rolled steel
- Voltage: 120-277V
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- CRI: 90
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-5%
- TRIAC Dimming: 100-1%
- IC Rated, Airtight
- Rated Life: 50000 Hours
- Shallow housing under 4in depth
- Single spot light source
- Adjustable LED light engine included with housing: Vertical Adjustment 0-30°, Horizontal Adjustment 365°
- Timless: Die-cast spackle frame included
- Accepts one optional honey comb louver or optical accessory
- Driver concealed within the fixture
Dimensions
- Aperture Size: 3.5"
- Cut Out: 4.25" x 4.25"
- Ceiling Thickness: 0.5" - 1"
Lamping
- Integrated LED
